● Support maximum resolution of 1920 * 1200@60Hz, transmitting and receiving box compact connection convenience
● No need IP setting within the same network , plug and play
● Over IP network transmission, can connect gigabit ethernet transmission application
● Low latency rate of video decoding algorithm can be realized through the switches support

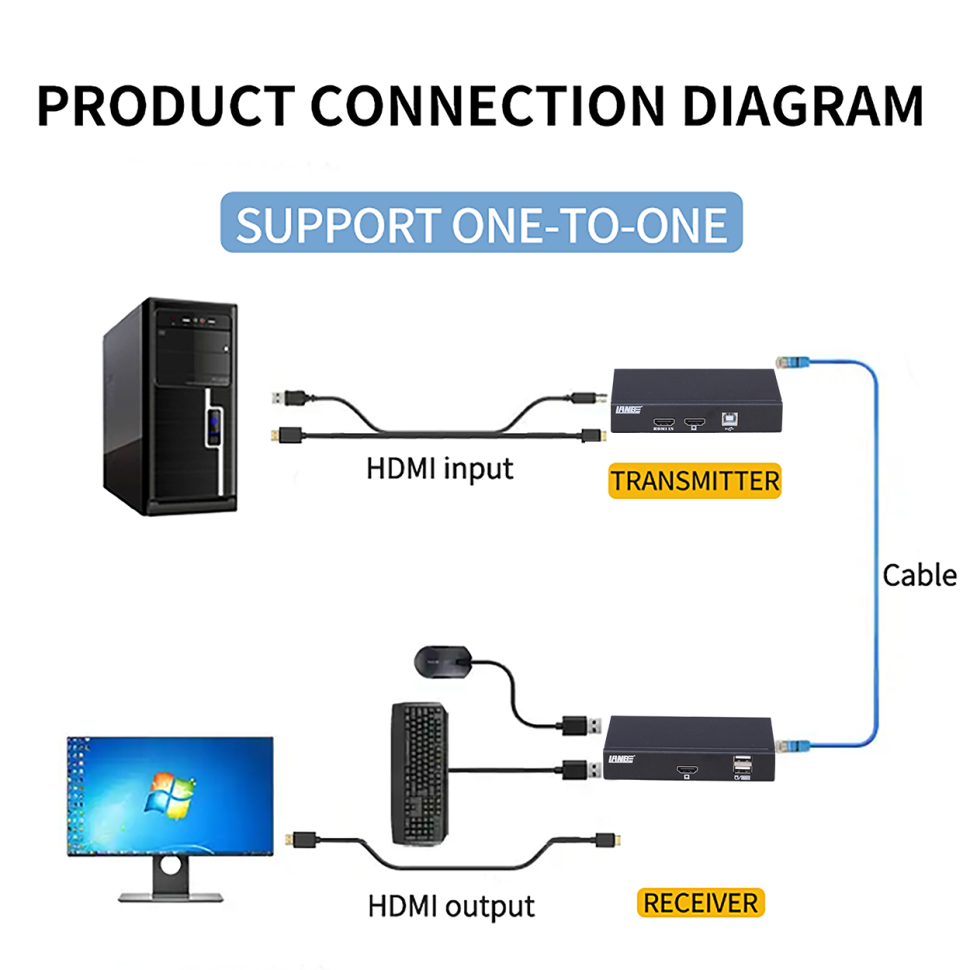

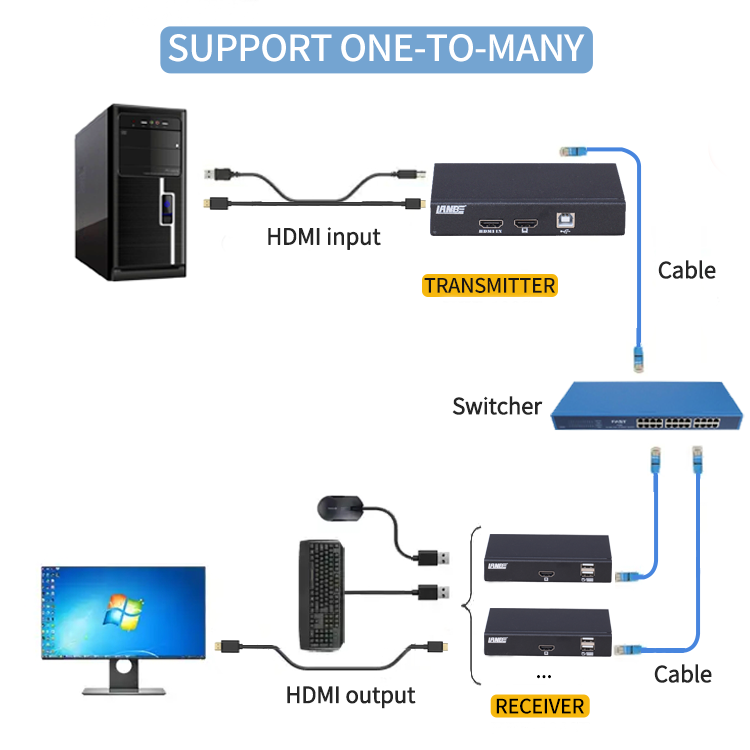

● One-to-one；one-to-many multicast transmission video
● Can implement daisy chain cascade through cable transmission
● Without extra servers and software control
● Executive function without too much concatenated
● Elastic expansion has very good flexibility
● Low delay :less than 10ms, transmission distance cat5e, cat6 line up to 150m
● Support infrared transmission
● Support HDMI audio transmission
● Support USB keyboard mouse separation output
● Support to send the HDMI ring out function
● Sccording to the application environment can be a variety of flexible connection way
|
Product Model |
KHE-100S |
||
|
Port |

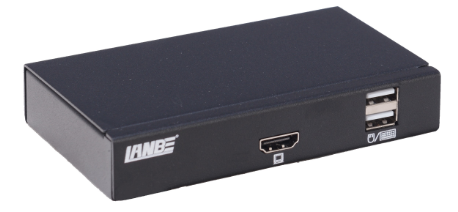

USB2.0 |
1 x USB Type B Female |
2 x USB Type A Female |
|
HDMI INPUT |
1 x HDMI-19P Female |
N/A |
|
|
HDMI OUTPUT |
1 x HDMI-19P Female |
||
|
AUDIO |
1 x 3.5MM Female |
||
|

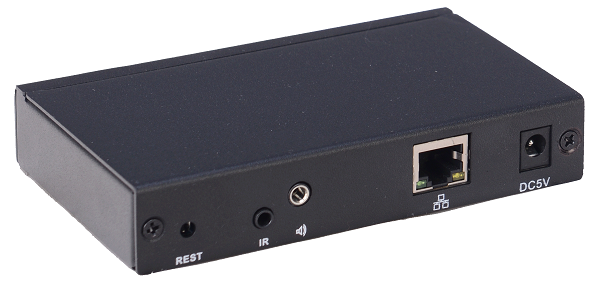

POWER |
DC5V2A |
||
|
IR |
1 x 3.5MM Female |
||
|
RESET |
1 x Semi-embedded keys |
||
|
Network |
1 x 1000M RJ45 Female |
||
|
Transmission distance |
CAT6 150M CAT5e 150M |
||
|
Maximum resolution |
HDMI： 1920 x1200@60HZ |
||
|
Standards |
HDMI1.3a，HDCP1.4 |
||
|
Delay |
<10ms |
||
|
Maximum data rate |
6.75Gbps |
||
|
Maximum pixel clock |
165MHZ |
||
|
Power supply |
The power adapter：DC5V |
||
|
Power dissipation |
MAX 3W |
||
|
IR frequency |
20-60KHZ |
||
|
Operating Environment |
Operation temperature |
0-50℃ |
|
|
Storage temperature |
-10-70℃ |
||
|
Humidity |
0-80%RH，Noncondensing |
||
|
Physical |
Housing |
Metal |
|
|
Dimensions |
125x75x23 mm |
||
|
Weight |
0.28KG |
||
