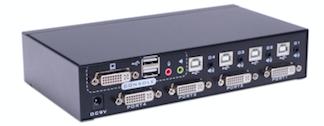

AS-41DA（DVI KVM Switch with audio, 4ports）

contact

As a KVM switch 4 ports with DVI interface allows users to access from a single USB keyboard, mouse and DVI the display console accesses 4 computers. Desktop compact design, metal casing, easy to install and place; provide users with a variety of fast switching options for audio, video, USB devices, saving desktop space, is a multimedia application such as SOHO office Ideal.

● 4 port USB2.0 multiple video series KVM switch
● Single USB controls 4 sets of computers and peripherals USB
● Built-in USB2.0 hub, compatible with USB2.0 protocol specification
● DVI video dual channel support resolution is 2560x1440 @60HZ ( 2K )
● Provide keyboard hotkey switching shortcut function and device panel button two switching function selection
● Support multiple platforms for various operating systems
● BIOS level hardware connection, no need to install drivers and control software

Item No.					AS-41DA
Computer Connections					4
Port Selection					Push button
Connectors	Console	Keyboard			1 x USB Type-A F (Black)
		Video			1 x DVI-I Dual Link F (White)
		Mouse			1 x USB Type-A F (Black)
		Audio	Speaker		1 x Mini Stereo Jack F (Green)
			Microphone		1 x Mini Stereo Jack F (Pink)
	Computer	Keyboard/Mouse			4 x USB Type-B F (White)
		Video			4 x DVI-I Dual Link F(White)
		Audio		Speaker/Microphone	4x Mini Stereo Jack F (Black)
	Power				1 DC Adaptor
LEDs	Online				4 (Green)
	Selected				4 (Red)
Switches	Port Selection				4 x Push buttons
Video					2560x1600
Power Consumption					5.7W
Environment	Operating Temp				0-40 ℃
	Storage Temp				-20-60℃
	Humidity				0–80% RH
Physical Properties	Housing				Mental
	Weight				2.10kg
	Dimensions (L x W x H)				202 x 110 x 43 mm

file version CN/EN Date download

AS-41DA（DVI KVM Switch with audio, 4ports）
