HDMI Screen Slicer supports 4ways HDMI signal input, 1 signal output, output supports HDMI video interface. Which could realize channel character display, 2 screens display or 4 screens display; which could be controlled by front panel or remote control.
System menu setting status could be saved automatically. Including audio, display mode before power-off; Device re-start after power-off, the setting status same as before.
Device with 5 display modes:
Mode1
Mode2
Mode3
Mode4
Mode5

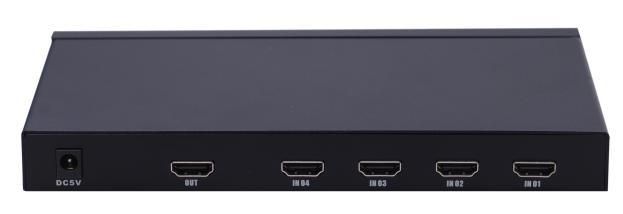

HDMI 4 Screen Splicer
Model Number：MHS-404HD
Input Signal：4 ways HDMI signal
Output ：1 way HDMI signal
Resolution：1080P/60HZ
Switch mode：button、infrared control
Display mode：full screen mode, multi-screen mode, Creative mode, picture out picture mode
Working temp：0-50℃
Working humidity：0-80%RH， No condensation
housing：metal
Dimensions：207 x 115 x 23mm
Weight：0.85kgs
