CV-1235（VGA Splitter in Plastic Housing, 2ports）

CV-1235（VGA Splitter in Plastic Housing, 2ports）

contact

Introduction
Specifications
Topology Map
Downloads

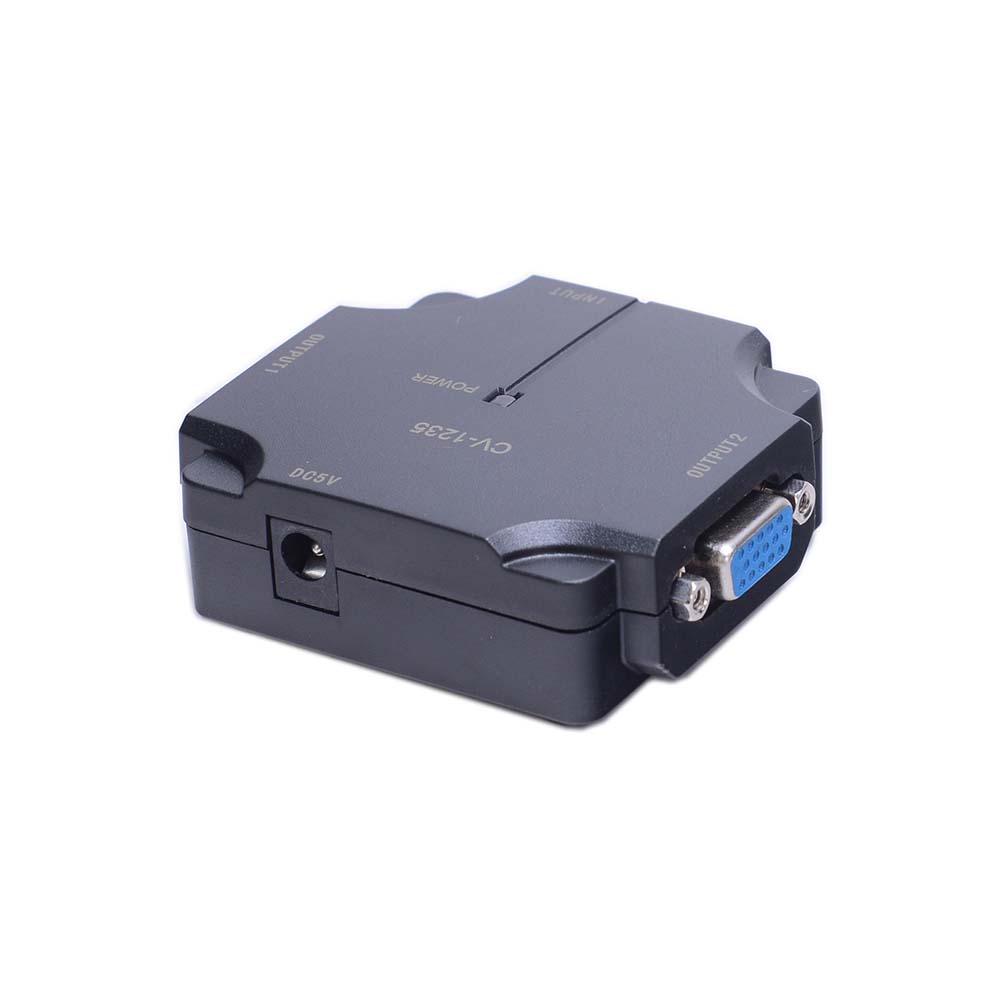

Plastic housing VGA splitter CV-1235 (video splitter) is the equipment to distribute one video signal to 2 VGA output equipment synchronously, to ensure different displays show the same image. The equipment with USB power supply. Advantages: high bandwidth, resolution and reliability, As well as the long-distance signal transmission, the max long-distance can reach 65 meters. it could be used in: securities business, computer exhibition hall, public broadcasting and education training center ...,etc.

Type		CV- 1235
Bandwidth		350MHz
Signal	Product Type	1 into 2
	Connector Type	INPUT HD15M; OUTPUT HD15F
	Min input voltage	0.5Vp-p
	Max input voltage	1.0Vp-p
	I/O impedance	75Ω
	Max Resolution	2048*1536
	Horizontal frequency	30-120KHz
	Vertical frequency	40-120Hz
Pertinence	Dimension (mm)	666224 mm

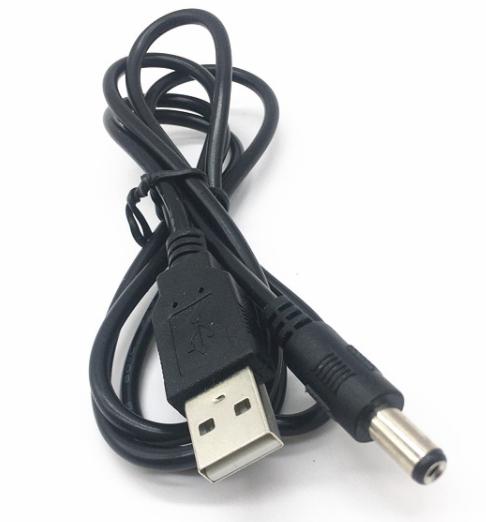

Pertinence	Power	USB Power Supply (5V 500mA)
House		Plastic
