AS-7104DLS (Single Rail, 17” DVI LCD KVM Switch)

LCD Monitor Features:
● Front LCD Console(keyboard,mouse,monitor17”)+ 4 ports DVI KVM Module design (1ports); It’s very flexible and convenient for combination;
● Extra prepositive USB mouse interface;
● Total length: 611m; fit for 800-1200mm cabinet;
● Support 1080p resolution;

DVI KVM Module Features:
● Single USB console control 4DVI interface computer and two additional USB device
● Supports USB TYPE A interface type keyboard and mouse device
● DVI LCD Console resolution in Optimum:1920x1080@60Hz;
● DVI module resolution in Max: 1920 x 1200 @ 60HZ Local & Remote
● Switch the computer through the front panel buttons, keyboard hotkeys and screen menu (OSD)
● Connect to the controlled device for BIOS-level access without worrying about the risk of viruses and Trojans
● The controlled computer does not need to install any software and drivers, and the controlled computer directly recognizes KVM.
● Upgrade remote network control mode by extending IP BOX
● Support OSD to set user login mode and increase KVM login security requirements
● Support widescreen resolution
● Support DDC communication to adapt to different graphics devices
● Auto scan function monitors all computer operations
● Support for cross-platform operations - Windows, Linux, Mac*, and Sun*

17” High-Definition Monitor Specification:

Type		17.3” Wide-Screen LCD Console-A7100HLS(F)
LCD Monitor	Ratio	17.3” Screen, 16:9
	Video	Wide AHVA TFT-LCD
	Visible Square	381.888(H) x 214.812(V)
	Resolution	1920*1080 @60HZ
	Support Color	16.7M（RGB 6-bit data+ HiFCR data）
	Contrast	600 : 1 (Typ)
	Back light	LED
	Pixel Pitch	0.1989(per one triad) x 0.1989
	LED MTBF	100,000 hours
	Input power	12V
Keyboard (demountable design)	Keyboard	100Keys, detachable (9 different languages for choose)
	Compatible IBM/AT	Microsoft Windows9, Me/NT/2000/XP, WIN7, Server2003, WIN8, WIN10
	Port	Standard PS/2; USB
	Using life	>1,000,000 Times
Mouse	Type	Touch Screen
	Port	Standard PS/2
	X/Y Resolution	>1000dots/inch, (40x40/mm)
	Using life	>1,000,000 Times
Installation Dimension	40744545mm
Weight	8.5kg

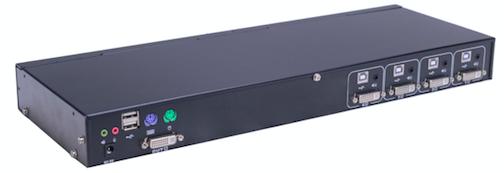

KVM Module Specification：

Type					4 Port(DLS-D04)
Model No.(Completed device)					AS7100DLS(F)+DLSD04 (AS-7104DLS)
Computer Connection		Direct Connects			4
CPU Port Selection					OSD Menu, Front panel buttons, Hot Key
Connectors	Console Connector				DB 37PIN
	PC Connector			Expansion Interface	1 x USB Type A Female (Front expansion Keyboard, Mouse Interface)
				Microphone	4 x Mini Stereo Female (Pink)
				Audio Speaker	4 x Mini Stereo Female (Green)
				Mouse/Keyboard	4 x USB Type B Female
				Monitor	4 x DVI-I
				Mixed Audio Connector	4 x Mini Stereo Female (Black)
	Power				1 x DC Jack
Key Switch	Connection Port Selection				KVM Operation Panel Digital keys
	KVM Reset				KVM Operation Panel Function Keys
LED’s	Selected				Nixie Tube LED Display
	Online				4 x Red
Analog Mode	Keyboard/Mouse				USB, PS/2
Resolution (Max)					1920 x 1200 @ 60HZ Local & Remote
Scan time interval					3, 5, 10, 15, 20, 30, 40, 60s (3s by default)
Operating Environment			Operating temperature		-10-50?C
			Storage temperature		-20-60?C
			Humidity		0-80%RH, No Condensation
Physical Properties			Housing		Metal
			Dimension		148.444545mm
			Weight		3.69kg
