Type

18.51” Wide-Screen LCD Console-AS9100TLS(F)

LCD Monitor

Ratio

18.51” Screen, 16:9

Video

Wide AHVA TFT-LCD

Visible Square

409.8(H) x 230.4(V)

Resolution

1366*768 @60HZ(Optimum)/1920*1200@60HZ(Max)

Support Color

16.7M, True 8 bit

Contrast

1000 : 1 (Typ)

Back light

LED

Pixel Pitch

300*300um

LED MTBF

100,000 hours

Input power

12V

Keyboard (demountable design)

Keyboard

100Keys, detachable (9 different languages for choose)

Compatible IBM/AT

Microsoft Windows9, Me/NT/2000/XP, WIN7, Server2003, WIN8, WIN10

Port

Standard PS/2; USB

Using life

>1,000,000 Times

Mouse

Type

Touch Screen

Port

Standard PS/2

X/Y Resolution

>1000dots/inch, (40x40/mm)

Using life

>1,000,000 Times

Installation Dimension

407*445*45mm

Weight

6.07kg

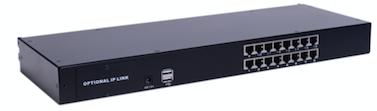

Type

16 Port(TLSC16)

Model No.(Completed device)

AS9100TLS(F)+TLSC16

(AS-9116TLS)

Computer Connection

Direct Connects

16

Maximum Connects

256

CPU Port Selection

OSD Menu, Front panel buttons, Hot Key, IP Remote Control (Optional)

Connectors

Console Connector

DB 37PIN

PC Connector

Monitor, Keyboard/Mouse Switch Module

16 x VGA/DVI/HDMI, 16 x USB

OR 16 x PS/2

Switch Module Port

16 x RJ45

Power

1 x DC Jack

Network Port

1 x RJ45(Optional)

Key Switch

Connection Port Selection

KVM Operation Panel Digital keys

KVM Reset

KVM Operation Panel Function Keys

IP Module Reset

1 x semi-embedded key

IP Module Default

1 x semi-embedded key

LED’s

Selected

Nixie Tube LED Display

Online

16 x Red

IP Network

1 x Green, 1 x Orange

Analog Mode

Keyboard/Mouse

USB, PS/2

Resolution (Max)

1920 x 1200 @ 60HZ Local & Remote

Scan time interval

3, 5, 10, 15, 20, 30, 40, 60s (3s by default)

Operating Environment

Operating temperature

-10-50?C

Storage temperature

-20-60?C

Humidity

0-80%RH, No Condensation

Physical Properties

Housing

Metal

Dimension

148.4*445*45mm

Weight

3.80kg
